Overbelt Magnetic SeparatorsWith Neodymium and Ferrite Permanent Magnets or Electromagnetic

All the power you need to recover maximum of ferrous metals, purify non-magnetic materials from ferrous metals and protect other processing equipment from damages.

APPLICATION. ENDLESS

Engineering Overbelt Magnetic Separators we considered every element that lets you experience high separation precision of ferrous metals from: plastic, rubber, glass, e-waste, municipal waste, RDF, incineration bottom ash, construction waste, wood chips, stones, foundry sand, WEEE, and wherever ferrous metals are found. Ultimate Cogelme Overband Magnetic Separators are breakthrough solutions which combines high and far reaching magnetic power. They bring out the best whether you separate ferrous metals from small to big sizes, or recover ferrous metals from higher materials depth, or high conveyor speed. Can be applied for fixed or mobile installations.

TECHNOLOGY. CUSTOM-DESIGNED

Cogelme Overbelt Magnetic Separators are built specifically according your needs, so you get a fully integrated system in which both works perfectly: smooth installation and outstanding separation results. Whatever is the task, Overbelt Magnetic Separators realized with Ferrite magnets, Neodymium magnets, electromagnets or by special combination are up to it. Cogelme developed a special Overband Magnetic Separator model for tires separation: ferrous metals and rubber are purified at over 99% - only with one pass.

SEPARATION PROCESS

Overbelt Magnetic Separator has to be installed crosswise or lengthwise above the conveyor tape/feeder at a fixed working distance. From flowing material iron objects are "captured" by magnetic power and, with a separator's tape, are carried away. After leaving magnetic field, extracted iron objects automatically drop into appropriate containers or conveyors.

ADVANTAGES. GET THE BEST FROM MORE THAN 30 YEARS OF INNOVATION.

  • High % and clean ferrous metals extraction from fine to big sizes
  • Increased separated materials purity and value to maximum
  • Protected other processing equipment
  • Long lasting durability
  • Individualized solutions according clients specific needs

Our experts are ready to provide you with more qualified information. Together with you they will carefully analyse your needs and determine an Overbelt Magnetic Separator or turn-key solution which bring out the best for you.

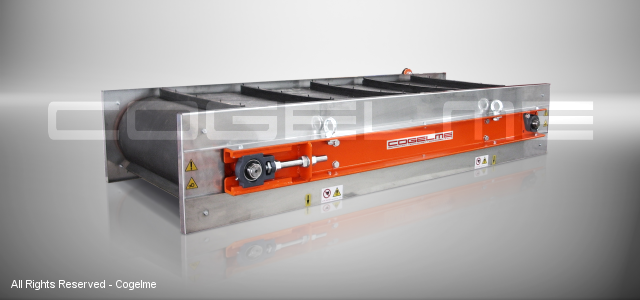

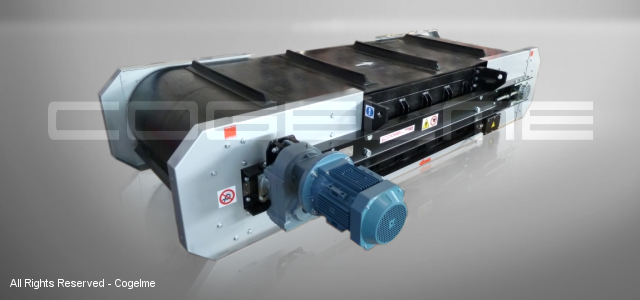

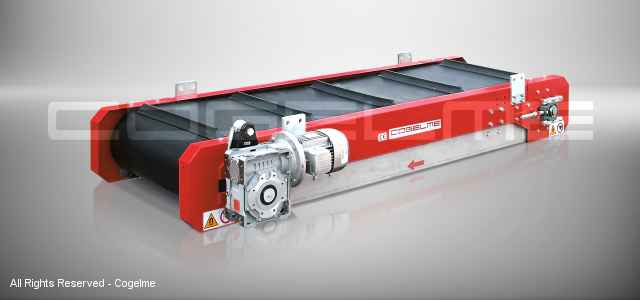

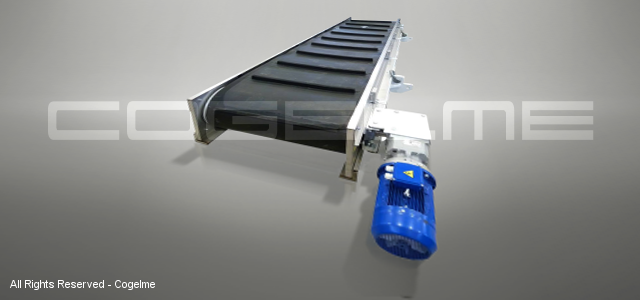

Pictures
